As TacSol enters a new phase in the company’s history, our goal has been to design and manufacture more products in-house to meet the quality and value expectations of our customer base.
With the release of our new Owyhee magnum rimfire rifle, our team decided it was time to develop our own rotary magazine to complement the precision and quality of our newest sporting rifle.
This new aluminum magazine not only improves the feeding performance among a variety of different ammunition types, but to also incorporates new materials and ergonomic elements which are not found in any other rotary magazines to date.
Details – Feed Lips
Unlike the common and basic cast feed-lips found in most magazines, we have opted to machine the feed lips from 416 stainless-steel bar stock, heat treating the cut blanks to 32 Rockwell prior to machining. This process results in a precisely machined feed lip which is tough yet not brittle, and extremely uniform in dimensions.
The feed lip’s design is also unique in that we have removed sharp corners from the front of the feed lips, resulting in a “melted” styling which makes loading much easier on the fingers.
After machining, the feed lips undergo a three-step finishing process which results in a smooth and attractive surface finish, clearly setting it apart from other magazines on the market.
Details – Magazine Body

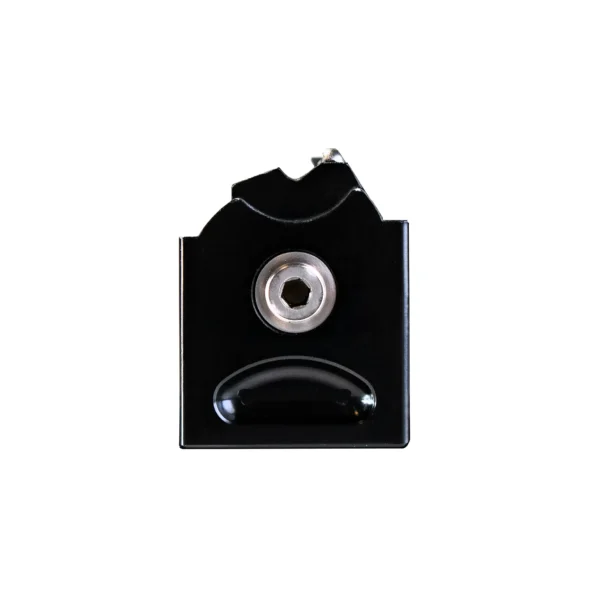

The next step was to machine our own aluminum magazine bodies, allowing us to incorporate special design elements and additional refinements such as a keyed face plate which prevents rotation or torquing of the magazine, as well as properly chamfered edges.
Starting with bar stock certified 6061 aluminum alloy, we painstakingly machine each body on one of our massive CNC vertical mills, assuring absolute precision, concentricity, and uniformity for all critical aspects of the magazine body. The precise location of the keyed notch in the body corresponds to the robust face plate, firmly locking together each half of the magazine.
At nearly triple the weight of a basic plastic magazine, this heavy-duty aluminum magazine has the heft of a quality product.
To protect the machined aluminum base material , we opted to go with a tough, Type 3 hard-coat anodization to protect the magazine from handling wear and to further enhance the overall aesthetic appearance of the product.
Hardware
It was only fitting to select 416 stainless-steel for the axle and hex nut, bringing yet another level of quality to our new magazine.
Specs
Chamber: Works for both .22LR and .17 Mach 2
Capacity: 10 Rounds
Dimensions: 1.59″ x 1.25″ x 1.63″
Weight: 86 grams ( 3 oz ) Empty
Under Tension
Keeping the rounds feeding smooth inside the magazine is a unique pairing of domestically made coil springs along with an in-house manufactured rotor. The polymer material selected for the rotor offers the ideal balance of durability, toughness, with a level of chemical resistance. The rotor design as been updated with beveled edges, smooth-flow radial flutes, and support gusset.
Maintenance
Our magazines are designed for many years of service with the added benefit of easy servicing, cleaning, and repairs. Spares parts kits are readily available to keep your TacSol magazine running for years to come. Like our rifles, our magazines are engineered and designed with our customer’s needs in mind; quality, durability, and American made.
